NOVEGA Beacon PT9 C-PROOF

Regular price $780.00 USD
Sale price

Hurry Up! Only 9 left in stock!

NOVEGA Beacon PT9 C-PROOF
NOVEGA Beacon PT9 C-PROOF
Regular price $780.00 USD
Sale price

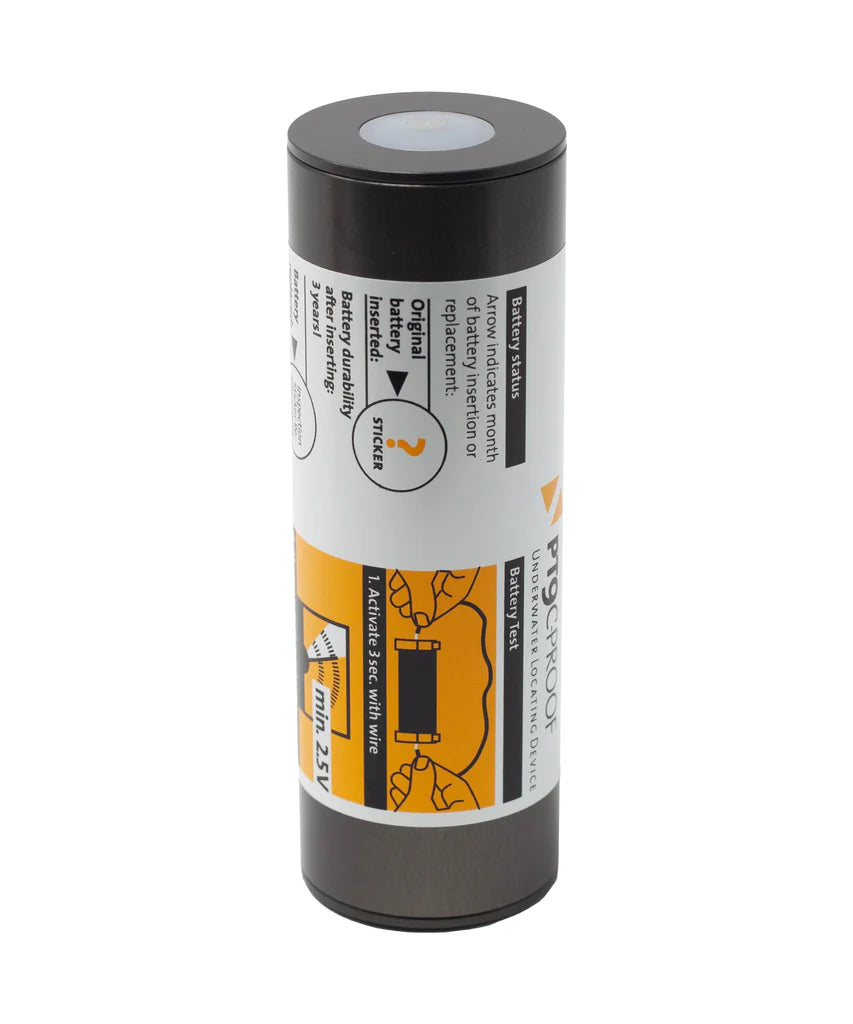

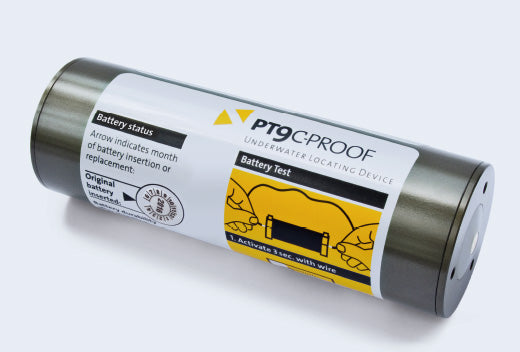

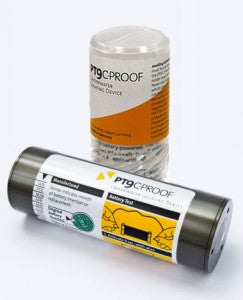

Beacon PT9 C-PROOF  sonar sensor necessary for the detection of VDR, got into the water. When released into the sea water sensor is activated and  sends a signal for at least 30 days.  PT9 C-PROOF has been specifically designed for use on ships. Therefore, to cover the body were selected materials that have worked well in practice, withstanding the harsh conditions on the ship for years. PT9 C-PROOF  protected from corrosion in the contact zones and features a patented intellectual activation, which prevents the inclusion of sensor from accidental water such as rain, sea spray, condensation, etc. This gives  PT9 C-PROOF advantage over other systems, because the number of false positives is reduced to a minimum. It also has a significant impact on the battery life of the battery.

The most common beacons that may be substituted Interchangeability Novega Parts
Dukane DK480 /
DKM480

YES

through adapter
L3 HVR01

Adaptor 350-17483
Dukane DK100
DK120
DKM120

YES

1: 1:

TELEDYNE
benthos
DATASONICS
ELP-362D

YES

1: 1:

RJE ULB-362

YES

1: 1:

Other well-known models Dukane Interchangeability Novega Parts
Dukane DK485

Yes,

through universal mount



Universal mount 350-18639
Dukane
DK130 DK140

Yes,

through universal mount



Universal mount 350-18639

PT9 Adaptor Kit
PT9 Adapter Kit
to L3 capsules HVR01
2 adapter plates, stainless
steel coated with RAL 9003 White
4 Screw 1/4 'x 3/8'
stainless steel
PT9 Universal Bracket
PT9 Universal Bracket
1 panel
2 clips
4 hexagon screws
Technical drawing with fastening
Instruction



Features
Operating frequency: According to DIN EN 61996
Working depth: 6000m (20,000 ft)
Pulse length: Ca. 9ms
Pulse repetition rate: Ca. 0.9 pulses / sec
Continuous working time: 30 days (min)
Acoustic power 106 N/m2 pressure at 1 meter (160.5 dB)
Acoustic power after 30 days: 70 N/m2 pressure at 1 meter (157.0 dB)
Management: Fresh or salt water
Power Source: Standalone, lithium battery (replaceable)
Operating Temperature Range: -2 ° C to 38 ° C
Weight 173 g
