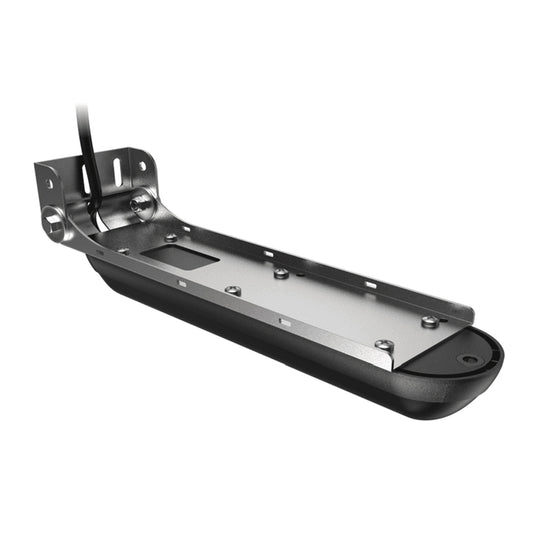

Active Imaging 3-in-1 Transom Mount Transducer

See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Key Features:

  • More refined detail and better range than any other imaging technology
  • Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan
  • Easier target identification with FishReveal™ Smart Target View
  • Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
  • Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 and Simrad NSS evo3 and GO series displays

Environmental

  • Operating temperature: -15°C to +55°C (+5°F to +131°F)
  • Storage temperature: -30°C to +70°C (-22°F to +158°F)

Physical

  • Cable length:   7.6 m (25 ft)
  • Mounting options: Transom, flush step, and jackplate mounting
  • Connector: 9 pin

Transducer

  • Output: Traditional, SideScan imaging, DownScan imaging and temperature
  • Frequency: Traditional: 200 kHz/High : Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz
  • Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft)
  • Operating speed: Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph)

Specifications:

  • Mounting Style: Transom
  • Imagining: Standard/Down/Side
  • Speed Included: No
  • Chirp: Medium/High
  • Cable Length (Feet): 25FT
  • Box Dimensions: 4"H x 10"W x 14"L WT: 3.6 lbs
  • UPC: 9420024172773
