Garmin GT15M-THF 0 Degree 600W SS Thru-Hull Transducer

Regular price $799.99 USD
Sale price

Hurry Up! Only 0 left in stock!

Garmin GT15M-THF 0 Degree 600W SS Thru-Hull Transducer
Garmin GT15M-THF 0 Degree 600W SS Thru-Hull Transducer
Regular price $799.99 USD
Sale price

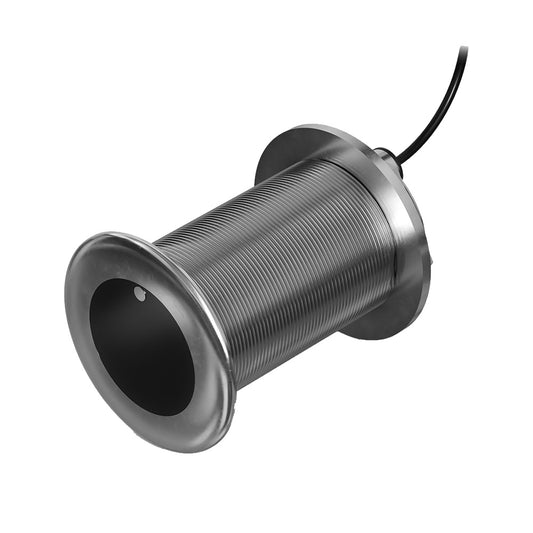

GT15M-THF 0 Degree 600W SS Thru-Hull Transducer

Designed for reduced drag and optimum sonar performance on midsize fishing and cruising boats, this flush-mounted, 600-watt mid-band CHIRP transducer clearly defines fish arches, structure, and bottom depth returns on the display.

Midband Chirp Traditional Sonar

This 8-pin, 600-watt stainless steel thru-hull transducer features high-definition mid-band CHIRP sonar that clearly defines fish targets and structures down to 1,200’ in saltwater and 1,900’ in freshwater.

Broad Frequency Range

Use the perfect frequency for the waters being fished. Covering the medium frequency range, this transducer pulses from 85–165 kHz, displaying a wide coverage area, crisp fish arches, and accurate depth readings.

Optimum Ping Sensitivity

Offering excellent sonar sensitivity, low noise, high resolution, and good separation of targets, this robust transducer makes it easier than ever to distinguish fish and structure on a compatible chartplotter display.

Thru-Hull Installation

A durable stainless steel housing and stem offer straightforward thru-hull flush mounting for minimum drag and optimum beam orientation for clear sonar returns.

Auto-ID Technology

Enjoy simple plug-and-play operation with Garmin auto-identification technology — which enables the sonar to configure itself to the transducer being used automatically.

Fits Various Hull Types

Configurable for various boat hull materials, including fiberglass, composite, steel, aluminum, and wood, the transducer is available in a range of tilt versions to accommodate deadrise angles of 0–20 degrees without a fairing block.

Specifications:

  • Transducer Frequency: Medium band chirp (85-165 Khz)
  • Transducer Power: 600 W
  • Transducer Beam Width: 24-16 degrees
  • Transducer Maximum Depth: 1200 Ft Saltwater; 1900 Ft Freshwater
  • Transducer Cable Length: 50 ft.
  • Transducer Depth/Speed/Temperature: Depth, temperature
  • Transducer Number of Pins: 8-Pin
  • Transducer Supported Deadrise/Transom Angles: 0 degrees support hull deadrise angles from 0 degrees to 7 degrees
  • Housing Material: Stainless steel

In the Box:

  • GT15M-THF transducer
  • Jam nut
  • Washer
  • Thread isolator
  • Hull isolator
  • Documentation

Specifications:

  • Cable Length (Feet): 50'
  • Mounting Style: Thru-Hull
  • Temperature: Yes
  • Box Dimensions: 7"H x 8"W x 11"L WT: 7 lbs
  • UPC: 753759319922
