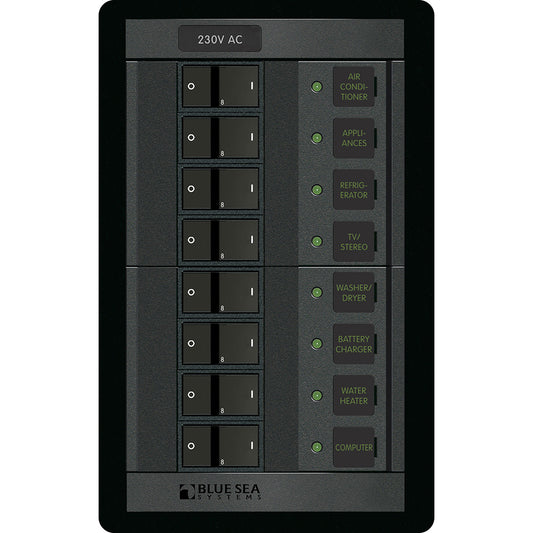

230 Volt AC 8 Position 360 Panel
This 360 Panel System consists of modules. Each module contains a meter, a battery switch, and 8 circuit-labeled positions.
Features:
- All circuit label positions are backlit
- “ON” indicating LEDs installed in all circuit positions
- Includes 4206—Square Format Label Set
Specifications:
- Positions: 8
- Nominal Voltage: 230V AC
- Maximum Amperage: 100A
- Height: 7.75 in. / (196.85 mm)
- Width: 4.88 in. / (123.95 mm)
- Depth: 3.00 in. / (76.2 mm)
- Weight: 2.72 lb. / (1.23 kg)
Specifications:
- AC/DC: AC
- Max Breaker Quantity: Eight
- Voltage: 230
- Waterproof: No
- Box Dimensions: 5"H x 7"W x 12"L WT: 2.4 lbs
- UPC: 632085012298
Quick Guide (pdf)
Owner's Manual (pdf)
