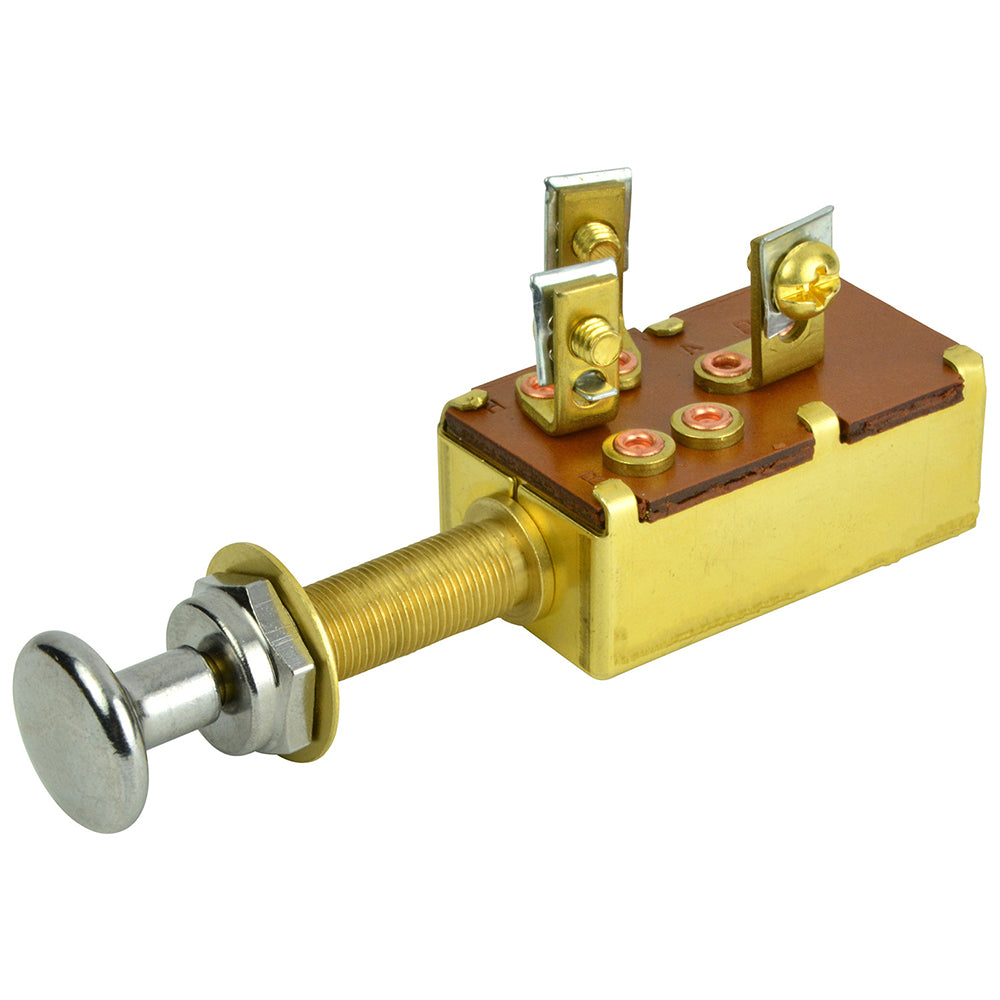

3-Position SPDT Push-Pull Switch - Off/ON1/ON2
Single pole, double throw switch turns on position 1 or position 2. Can be used to combine nav lights and anchor light with independent bulbs. Heavy-duty, noncorrosive construction with moisture-repellent insulators. Brass case, stem, terminals and mounting hardware. All knobs are screw-on type.
Features:
- Nominal voltage is 6-36V DC
- Rated for 10A at 12V DC
- #8-32 screw terminals
- Fits panels up to 1" thick
- Same as Cole Herssee part number M-531
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Throw/Pole: SPDT
- Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs
- UPC: 870216045986
