NOVEGA PT9 Ninety UAB - Underwater Acoustic Beacon

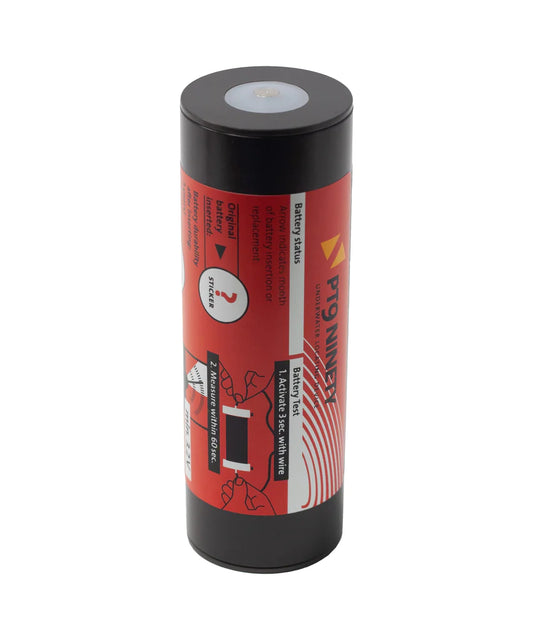

PT9-Ninety Underwater Locator Beacon (ULB)

Sonar Beacon – 90-day operational life.

Overview

Installed on the fixed capsule of a VDR or S-VDR system. The beacon assists in the recovery of the capsule in the event of a vessel sinking. The PT9 Ninety is the world’s widely-used ULB for installation on protective data capsules attached to voyage data recorder systems. In the event of activation through fresh or salt water the ULB transmits a signal. On ships which are built on or after July 1, 2014, ULB must ensure a regulatory transmission time of at least 90 days. Product Link (click here)

Features

• For use with Fixed Hardened Capsule
• PT9-NINETY: IMO resolution MSC.333(90): On ships which are built on or after July 1, 2014, underwater locating devices must ensure a regulatory transmission time of at least 90 days.
• Minimum Performance Standards
• SAE AS8045A
• IEC 61996-1 Ed. 2.0
• This standard incorporates the applicable parts of the performance standards included in IMO Resolution MSC.333(90).

Approvals

• SAE AS8045A
• IEC61996-1 Ed. 2:2013
• BSH/4542/002/0062585/14

Operating Details

• Operation depth: surface to 6096 m/20000 ft
• Operating Temperature: –55 °C (67 °F) to +85 °C – (185 °F)
• Operating Frequency: 37,5 ± 1 kHz
• Operating Life: minimum 90 days

Dimensions

• Length: 100 mm (3,92 inches)
• Diameter: 33mm (1,3 — inches)
• Weight: 187 g (6.6 ounces)

Special feature

• Interchangeability with PT9 C-Proof

By Novega
