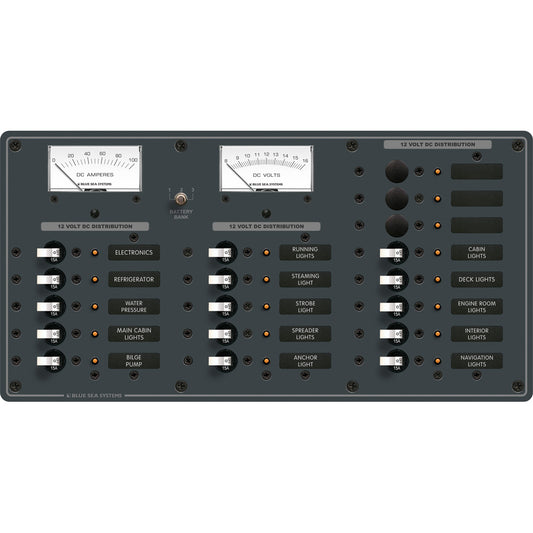

DC 18 Position
Description: 3 On/OFF
Voltage: 12v
Amperage: 100A
Installed 15A Single Pole: 15
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit positions
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Max Breaker Quantity: 18
- Voltage: 12v
- Box Dimensions: 6"H x 14"W x 22"L WT: 7.65 lbs
- UPC: 632085083786
Quick Guide (pdf)
Owner's Manual (pdf)
