IKAROS Manoverboard (MOB) MKCI S/L W/BRACKET

DESCRIPTION

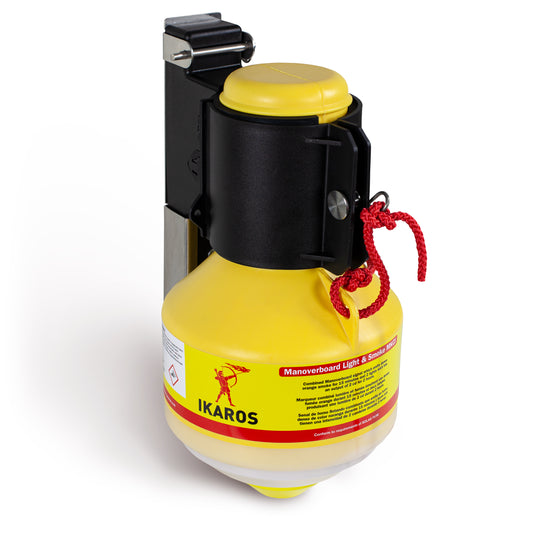

This NEW Man Overboard signal is the most compact in the world and has an innovative 360-degree light ring that clearly marks the position of the person in the water. Despite its compact size, it delivers a

dense orange smoke for more than 15 minutes. This distress signal is designed to be mounted vertically on the ship’s bridge, with one on the port and one on the starboard side. It should be attached inside, behind or to the side of a lifebuoy at a minimum of five meters above the water line. When the lifebuoy is thrown overboard, the MOB is pulled with it and as it leaves its bracket, it automatically emits light and smoke to attract attention to the person in the water. On smaller vessels, it can be mounted on the wheelhouse bulkhead and launched manually. The MOB light and smoke signal has an alkaline battery and can be used as a day and night marker. It is approved globally and meets the latest SOLAS regulations.

Made in Sweden by Hansson PyroTech AB since 1888.

• Performance Light: 2 cd >2 hours
• Smoke duration: >15 min
• Dimension: 175 x 325 mm
• Weight: 2.75 kg (6.06 lbs)
• Ref. no.: 34 53 05
• SOLAS MED B (SMOKE): MEDB00006J4
• SOLAS MED B (LIGHT): MEDB00006J3
• USCG (SMOKE): 161.110/EC0098/-MEDB00006J4/EC0736
• USCG (LIGHT): 160.157/EC0098/-MEDB00006J3-Rev.2/EC0736
• ITEM NO: CI3453P

• ADDITIONAL INFORMATION

  Weight	.65 lbs
  Dimensions	10 × 1 × 1 in

Download for the SPECIFICATION SHEET

Quality System Approval (Module D SEE21056)

IKAROS MOB Light MKCI 34530 (Module B)

IKAROS MOB Smoke MKCI (Module B Rev. 2)

MSDS Sheet

Mounting Instructions
