Garmin ECHOMAP Ultra 2 Ice House System w/ECHOMAP Ultra 2 166sv Chartplotter LiveScope Plus System

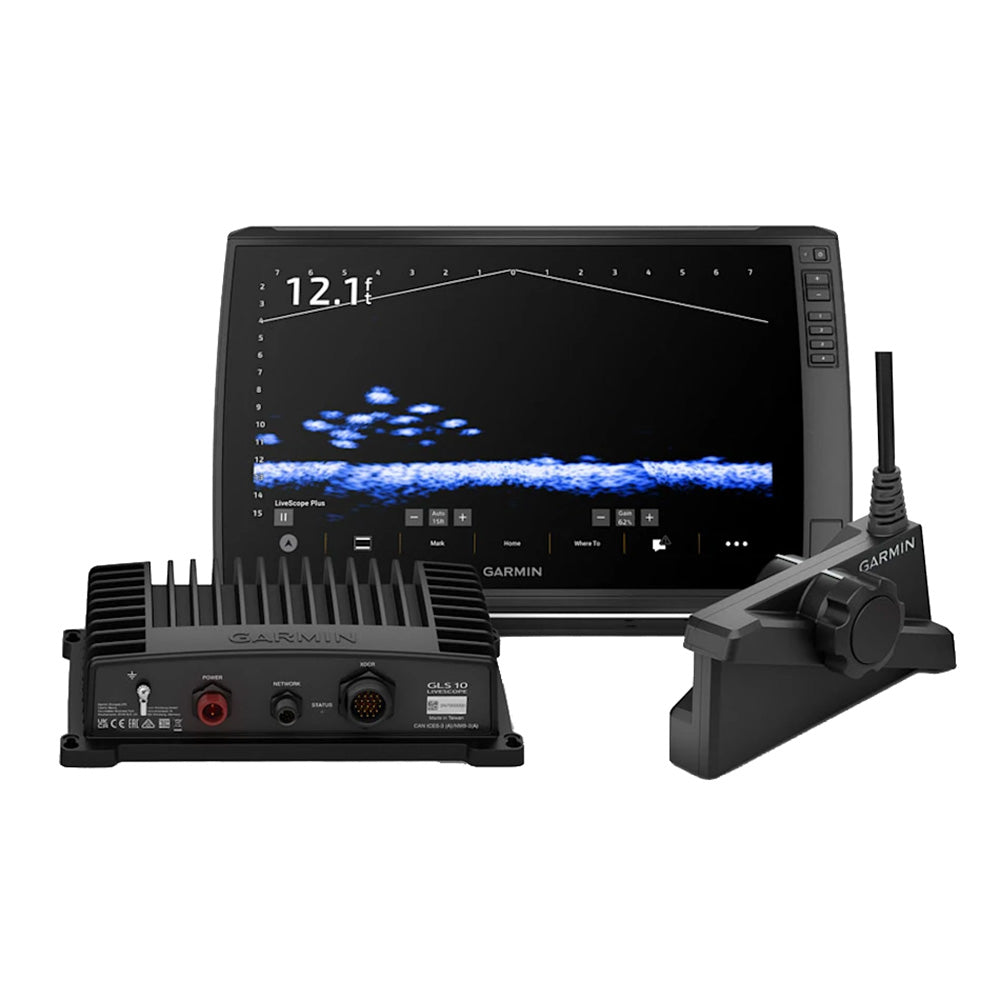

ECHOMAP™ Ultra 2 Ice House System with ECHOMAP™ Ultra 2 166sv Chartplotter & LiveScope™ Plus System

OUTFIT YOUR ICE HOUSE

Upgrade your on-ice experience with the ECHOMAP Ultra 2 16-inch chartplotter, LiveScope Plus System, and everything else you’d want to help you catch more fish.

ECHOMAP ULTRA 2 16-INCH

This chartplotter features a 16-inch full HD IPS display with touchscreen, mapping, and HDMI output, so you can display sonar on your TV or external display.

ICE HOUSE SYSTEM

Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.

LIVESCOPE MODES

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

GARMIN NAVIONICS+ MAPPING

Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.

CUSTOM COMBOS

Create custom pages that combine Sonar and maps on your display.

BUILT-IN SONAR

See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.

Features:

• 16" Full HD IPS touchscreen display
• Share to your TV or external display via HDMI output
• Livescope Forward and Livescope Down Modes
• Preloaded with Garmin Navionics+ Mapping of 25,000 Inland and Coastal Lakes

Specifications:

• Dimensions: 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)
• Weight: 9.5 lbs (4.31 kg)
• Water rating: IPX7
• Touchscreen: Yes
• Display Type: FHD, IPS
• Display Size: 13.6" x 7.7"; 15.6" diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal)
• Display resolution: 1920 x 1080 pixels
• Input: Touchscreen with Keyed Assist

What's In The Box?

• ECHOMAP™ Ultra 2 166sv with preloaded Garmin Navionics+™ Inland, Coastal, and Offshore Mapping for U.S. or Canada
• LiveScope™ Plus LVS34-IF transducer
• GLS™ 10 black box sonar module with power and network cables
• Ice fishing pole mount
• 0° shaft mount
• Power and network cables
• Hardware
• Documentation
